- Each port has a Ph2.0 & BT2.0 connector, please DO NOT charge 2 batteries in one port at the same time. Otherwise, the battery life will be reduced or the battery will be damaged.
BETAFPV - 6 Ports 1S Battery Charger
$40.000
Ver más detalles
Agregar al Carrito
Cargando
Specifications
- Item: 6 Ports 1S Battery Charger & Adapter
- Input connector: Type-C
- Input voltage range: 5-12V
- Max input power: 30W
- Max input current: 2.5A
- Max charging current: 1A (Single-port)
- Support battery connector: BT2.0 & PH2.0
- Charging protocol: PD3.0/QC3.0 (5V/9V/12V) / BC1.2
- Battery type: LiHV 4.35V

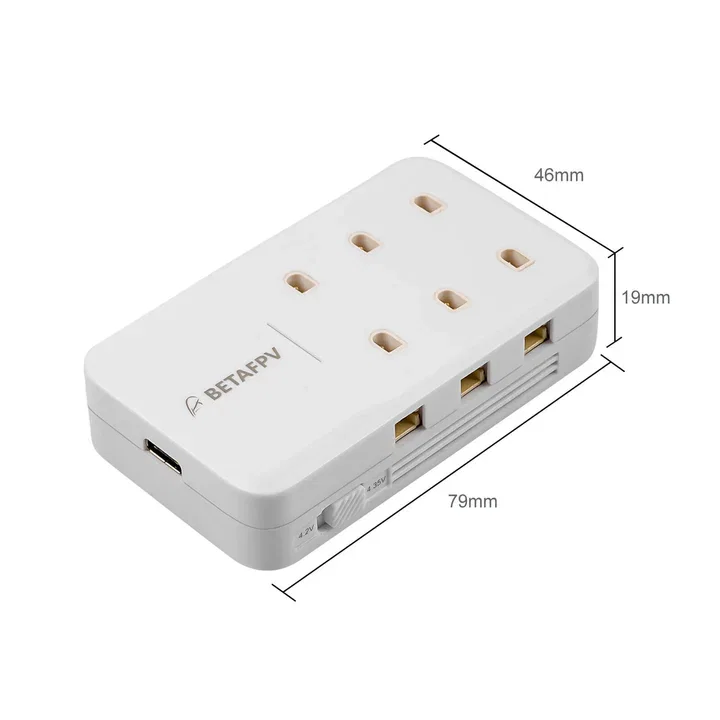

- Dimensions: 79*46*19mm
Support Fast Charging
The 30W power adapter supports multi-charging protocols including PD3.0 /QC3.0/ BC1.2, equipped with 6 ports 1S battery charger with a maximum charging current of 1A, which makes charging faster. 6pcs BT2.0 300mAh 1S batteries can be fully charged in about 25 minutes.
Button Function
The function of the button is to switch the charge voltage: 4.35V.
The new batches’ switch left side changes the “4.2V” to “OFF” as shown above.
LED Indicators
Green LED lights indicate the charging status of each battery slot.
| Status | Description |
| Green light flashes | No battery detected |
| Green light on | Charging |
| Light off | Charging completed |
Note: If the indicator light is off when no battery is connected to an output port, this indicates a faulty charging circuit – the port should not be used for charging.
Orange LED light reveals charging mode.
| Status | Description |
| Orange light on | Low-power charging |
| Light off | Fast charging active |
Recommendation: For fast charging, use a power adapter rated ≥30W.
FAQ
Package
- 1 * 6 Ports 1S Battery Charger
- 1 * User Manual
